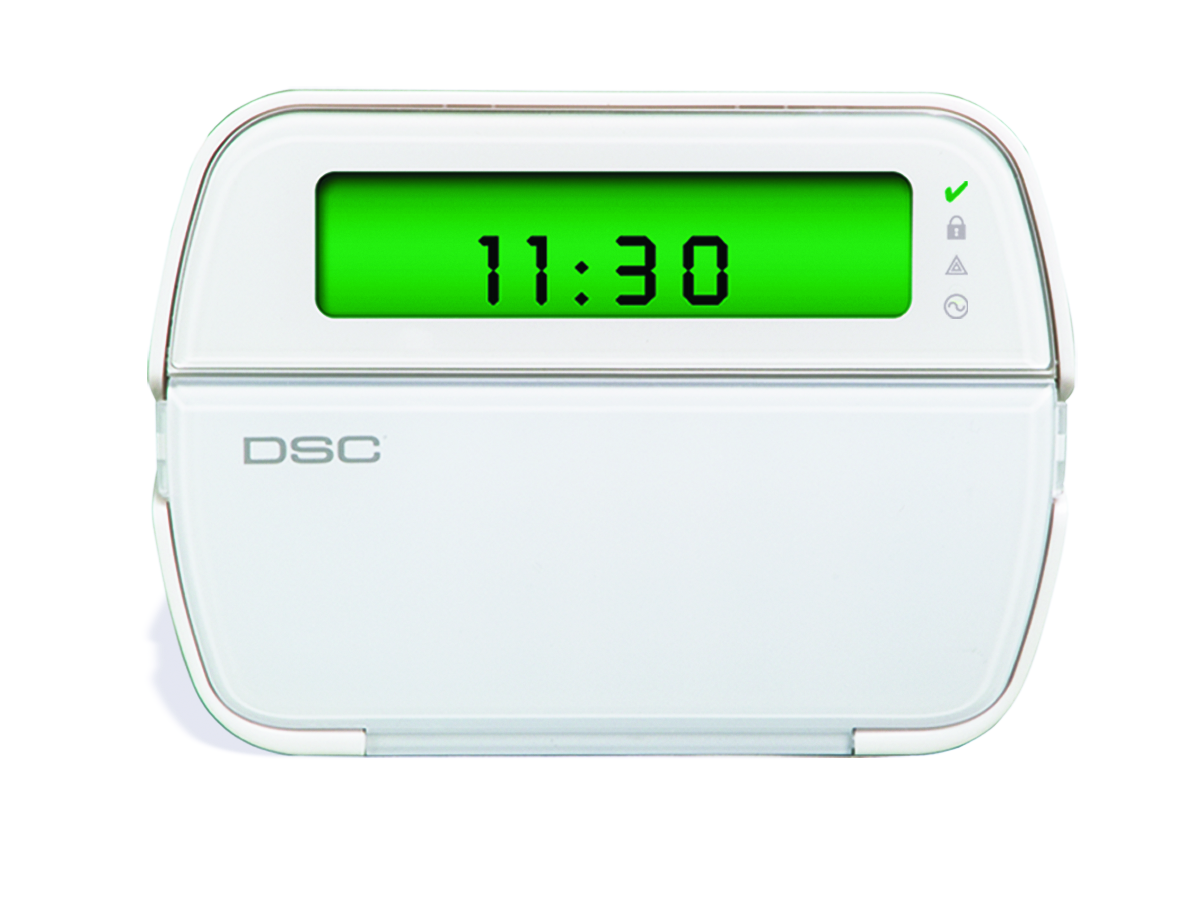

*Note: This style keypad may be used by several panels:

5501 DSC Power Series Fixed English

  Alarm Panel


CPU:

CPU:

Finding Your Alarm System Model Number

Most alarm panels normally have the model information on a sticker inside the lid of the main panel box. This is not the keypad used to arm and disarm; instead, look for a tan metal box about 16” square. It will probably be tucked away in a closet or laundry room, and may or may not have a locking lid. It could just be screwed shut and you will need a screw driver.

If you don’t have a key, look on top of the panel. Or, check the “catch-all” drawer in the kitchen. It will be smaller than a house key, with teeth cut on only one side.

Once the lid is open, locate the panel information. Most lids have a wiring diagram sticker on the inside of them.  Usually the make and model number is in a larger bold font than the rest of the text.  (Please see some sample pictures below.)

If there is not a sticker present, look directly on the control panel itself.  The control panel looks like a mother board that would be in a computer.  It almost always has a green background.  (Please see the sample pictures below.)

Check the selected areas for model numbers.

Check the selected areas for model numbers.

Check the selected areas for model numbers.


Check the selected areas for model numbers.


Check the selected areas for model numbers.

Check the selected areas for model numbers.
